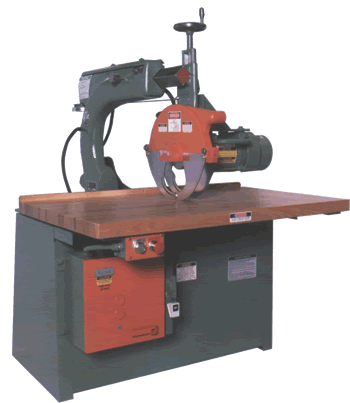

90 Degree Cutoff Saw | Click here to view the full brochure for this machine With a telescoping ram, the entire upper assembly recedes at the completion of each cutting stroke, leaving table free and clear for measuring and other work. No long arm to work around. Convenient, simple. Work Always in Full View |
**Now Available: Single Phase Arbor Motors
These motors are available for new machines an retrofitting applications.
Pricing: Add $310.00 to 5HP 3 phase Price.
5 HP 1 phase motors pull 22 full load Amps.
| Motor Horsepower | 5hp 7-1/2hp 10hp |
| Saw Diameter | 16" |
| Saw Hole | 1" |
| Dado* Largest Width on Standard Mandrel | 1-9/16" |
| Dado* Largest Width on 1-3/8" Standard Mandrel | 3" |
| Maximum Depth of Cut (16" Saw) | 4-1/2" |
| Cross Cut Capacity |
21" NOTE: Machine may be equipped for up to 25" cross cut capacity. Contact factory for depth of cut limitations. |
| Motor Lowers, Center of Arbor to Table Top, Min | 3-5/8" |
| Size of Table | 30" x 48" |
| Height of Table | 32" |
| Floor Space, Overall | 48" x 60" |
| Approx. Net Weight | 620 lbs |
| Approx. Shipping Weight | 820 lbs |
| Approx. Shipping Weight, (Export) | 1020 lbs |
| Cubic Contents (Export) cu. ft. | 104 lbs |
| * Special Dado Guard Must Be Used | |
Standard Equipment: Regular machine complete with guard and kick back preventer,
magnetic starter with 110 volt at pushbutton and automatic electric brake.
Hydraulic Crossfeed, Power Clamp, 18" Blade Capacity, 20" Blade Capacity, NEMA 12 Electrics with Fused Disconnect, Rolling Tables, Graduated Gauges with Stops, Dado Extensions, Dado Guards, & Lube Systems. For extras not listed, please contact our factory.
