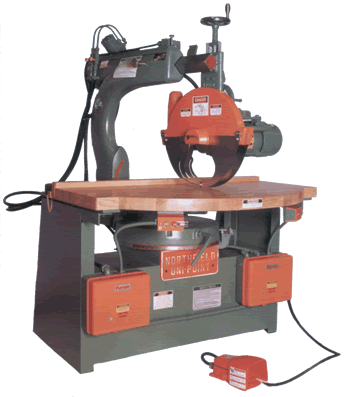

Hydraulic Crossfeed Power Unit

For Uni-point and 90 degree Cutoff Saws

Click here to view the full brochure for this machine

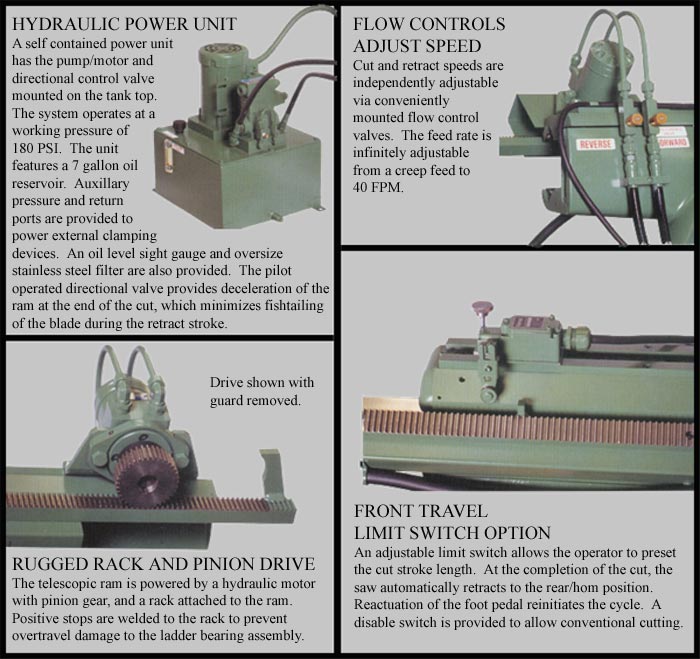

This powered crossfeed features a rugged rack & pinion drive with a 3/4 horsepower hydraulic power unit. Conveniently located flow-control valves allow the operator to independently set cut and retract speeds. A movable foot pedal controls cutting and retract strokes. Cut and retract speeds are infinitely adjustable from a creep feed to 40 FPM. A pilot operated 4 way valve provides deceleration at the end of the cut, minimizing fishtailing of the blade during the retract stroke.

Click here to view two short movies showing the Hydraulic Crossfeed in operation


3/4 HP
Pump Volume 3 GPM
System Pressure 180 PSI
Reservoir Volume 7 Gallons
Type of Oil Mobil DTE Light
Feed Rate 0-40 FPM
Voltage 230/460/60/3
