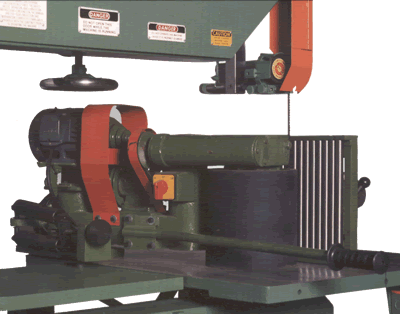

Band Resaw Feeder

Click here to view the full brochure for this machine

Designed for the manufacturer who requires the versatility of using their band saw as a standard saw or, when required, as a resaw. This unit is easily mounted on machines 32" and larger. Its ten feed speeds (up to 90 fpm) offer increased productivity at a very economical price.

Specifications Model CKRF-32

Motor (2-speed) 1/2 hp, 3 phase, 220 or 440 volt, 60 hz TEFC
Feed Speed (10 steps) 6 to 90 FPM
Feed Roller Height (standard) 9-1/4"
Fence Height (roller type) 12-1/2"
Feed Roller Diameter 8-1/2"
Lateral Fence Adjustment (from blade) 0 to 4"
Lateral Feed Unit Adjustment (from blade) 0 to 10"
Shipping Weight 300 lbs.
Manufactured in Taiwan


Standard Equipment

One Rubber Covered Roller Please Specify voltage requirement One Roller-type Fence (220 or 440) when ordering. Feed Unit Instruction Booklet
