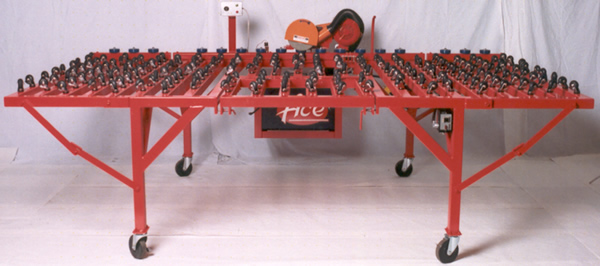

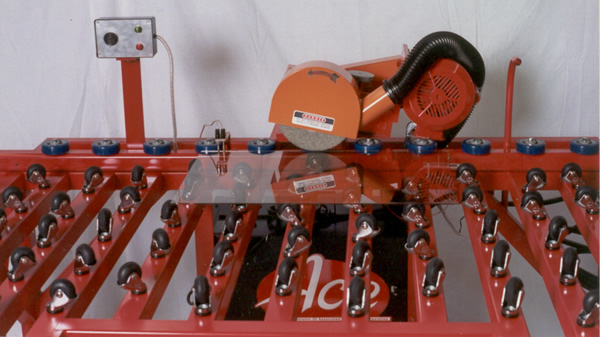

Edge Delete Table

w/Square Tube Caster Deck

Allows broken glass to fall thru machine to the floor

Click here to view the full brochure for this machine


Table Work Height 36"
Table Size-Wings Down 60" wide x 54" deep
Table Size-Wings Up 113" wide x 54" deep
Wheel Head Motor 3/4 HP 1725 RPM TEFC
Arbor RPM 4000 RPM
Arbor Size 3" diameter x 1/2" wide
Wheel Size 8" diameter x 3" bore x 1/4-1/2 wide deburring & finishing wheel
Dust Collection 226 CFM with 99.97% HEPA filter
Power Requirements 115 volt, 1 phase, 20 Amp circuit
Net Weight 1500 lbs.
Shipping Weight 1700 lbs.
