Air Switch Conversion

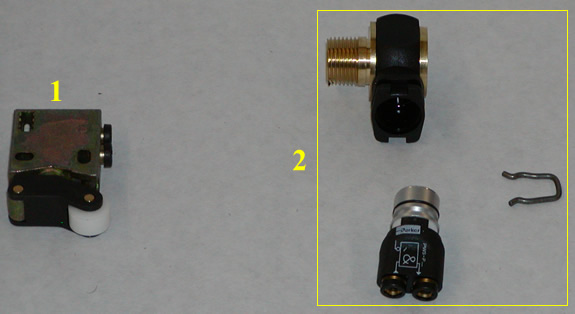

  1. Air switch on guard panel
  2. Air switch on upper guard cylinder

These switches are for 410s, 612, & 1012 Under Table Cut-off Saws. Switch number 2 above, replaces switch number 1.

The original mechanical air switch on the guard side would contact the workpiece when the guard clamped. It would then send a signal making the blade move up.

The guard cylinder air switch accomplishes the same thing by sensing the pressure drop in the non-rod end of the guard cylinder when the guard clamps.
