Patternmaker Option

The patternmaker option allows the infeed table to be adjustable up to 5° in relation to the cutterhead and
outfeed table. This is used to joint draft angles on deep ribs and large bevels on various pattern components
where it is impratical to saw or grind draft. Also includes a limitswitch on the hand brake.

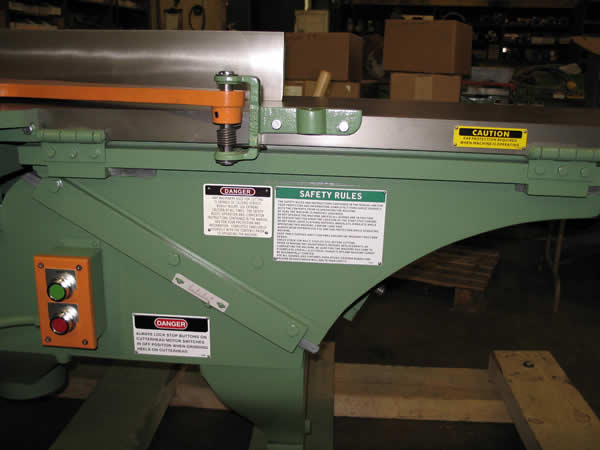

The infeed table and sub table are ganged together with large hinges that allow the infeed table to tilt.

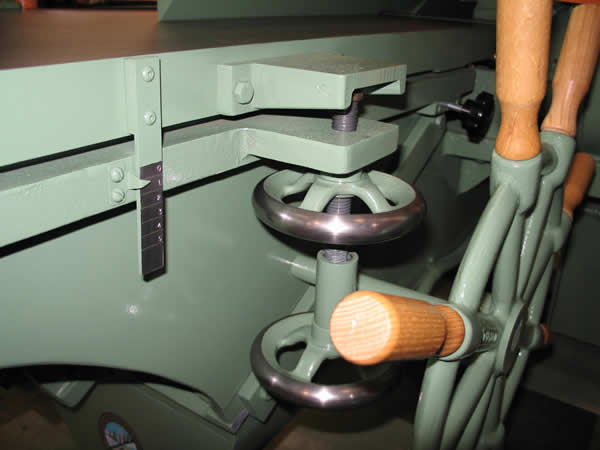

On the rear of the infeed table are the adjusting and locking handwheels
used to set the drafts angle. Adjacent is a 0-5° scale.

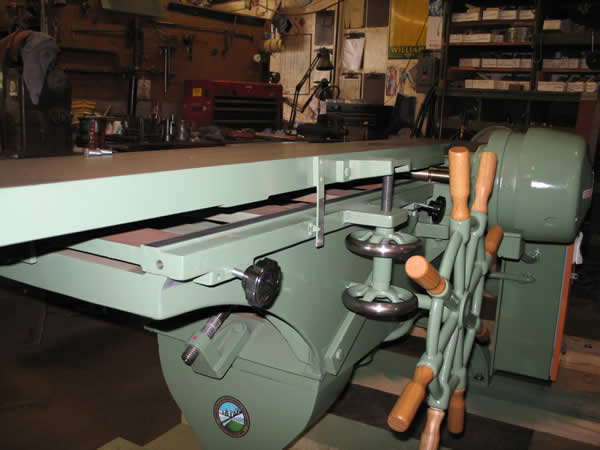

Rear view showing the infeed table elevated off of the subtable.

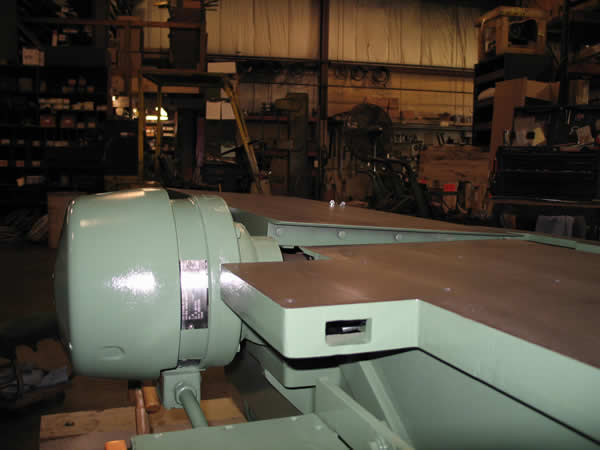

View showing infeed table out of plane in relation to the cutterhead and outfeed table.
