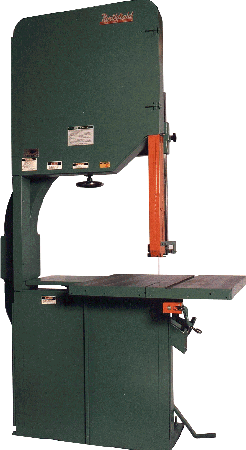

The Largest and finest band saw in the line. Equipped with: 36" x 2" steel dies wheels with demountable, steel reinforced, rubber tires; Heavy Duty Quills; 37" x 37" table tilts 45 degrees right and 5 degrees left; Stationary table 16" x 19"; Removable table inserts; Two ball bearing guides; Heavy steel hinged guards; Dust-chute; 24" under guide; Tension indicator; Automatic safety tension control; Automatic safety brake on upper wheel which operates automatically if blade breaks or runs off wheel, also operates by push button or lower wheel brake; Blade tracking guide; Spring counter balance; Work light; Totally enclosed fan cooled motor; Sealed for life ball bearings throughout; Magnetic starter with push button control; Direct motor drive available in 5, 7-1/2 or 10 HP, TEFC with speeds of 600, 700, 900 and 1200 RPM; Complete "V" belt drive machines available with 5, 7-1/2 or 10 HP, TEFC motors with constant speeds of 300 to 1275 RPM. | |
Specifications |
Wheel Face | 2" |
Size of Tilting Table | 37" x 37" |
Size of Stationary Table | 16-1/2" x 19-1/2" |
Front Edge of Table to Edge of 3/8" Blade | 13" |
Capacity Under Guide | 24" |
Table Tilts to Right | 45 degrees |
Table Tilts to Left | 5 degrees |
Horizontal Capacity | 35-1/2" |
Table Height from Floor | 42" |
Floor Space | 50" x 63" |
Domestic Shipping wgt. lbs | 2600 |
Height | 110" |
Direct Motor Drive HP and RPM *TEFC | 5HP*-600, 700, 900, 1200 7-1/2 HP*-700, 900, 1200 10HP*-900, 1200 |
Wheels | Steel Demountable Tire Disc |
Brakes | Lower Wheel F.O. & Upper Wheel Auto. |
